An Easy DIY Aptasia Burner

Rating: 56 votes, 4.95 average.
First, I'll start off with a small disclaimer - I did not create this idea on my own. It was an idea I elaborated on to suit my own needs. This tool is something plugged into your household outlet and put into your fish tank with open ended wires allowing electricity to pass through the water. I cant be held responsible for any injury to yourself or your livestock. Use at your own risk. With that said. Ive used this on several large reef tanks including one of the premier Seattle area LFS's display tank.
Now a little history followed by step by step instructions to build one for yourself. If you're brave enough.

Last summer a fellow reefer was being plagued by majano anenome's and started hunting the web for solutions to rid herself of the problem. She stumbled across a thread where someone had documented their own trials and tribulations while trying to rid themselves of the majano plague. The most successful, lowest impact solution was a device consisting of a doorbell, door bell wiring and a twelve volt flashlight battery. My friend bought all the components, built one of the devices and then showed it to me. I used the tool and thought it was creative, but extremely awkward to use and lacking in the power needed to be effective without standing at my tank for an hour killing only a few aptasia. Also, when the battery died, a person would have to go buy another one.

Being skilled in residential electrical work, I immediately thought of a sixteen volt doorbell ballast. I went home and thought about it a little more, wondering if the extra voltage would harm my fish or corals. I had to try to see if it would work. Later that week, while my family was out of the house, I went to work removing the ballast from the ceiling of the hall closet and taking the brass doorbell off the front of the house. Fortunately, I had a coil of small guage wire left over from a garage door installation laying around, so my experiment wasn't going to cost a dime. Or so I hoped...if my experimental tool electrocuted my tank, it could potentially cost thousands of dollars in livestock losses. I was even further concerned when I looked closely at the ballast and realized it produces ten amps at sixteen volts. My high school science teacher taught us it's not necessarily the volts that kill, but the amps. I surely wasnt going to stick this in my sytem and flip the switch.

I thought about my system for a minute and realized that I could isolate my refugium by turning off the return pump and removing the overflow pipe. Within a few minutes, I had the refugium isolated, the tool built, and I was ready to test it out. I stuck the prongs into a cluster of aptasia, pushed the button and to my surprise, only the anenome being physically electrocuted reacted badly; it shrank up to a small ball and slowly started to dissolve. Every aptasia surrounding the victim was unaffected. I tried it several more times in the refugium and then feeling more confident in the tool's safety, I put the refugium back on line. I decided to test more for stray voltage before taking it into my display tank. I continued zapping aptasia in the refugium and after each zap, I stopped and checked my fish and corals for abnormal behavior. Everything was fine, so I decided it was time to kill some pesky aptasias and the one majano in my display tank.

As I zapped away, I realized I was starting to have fun pushing the button and electrocuting the pests that have plagued me for so long. This tool was so effective for me, I tried it on some wild mushrooms with great success. Then the pocillopora babies that were growing all over the tank under all of my colonies came under attack. Much to my suprise, only the branch of SPS coral that the wires were touching would retract polyps as it was being electrocuted. I realized that it wasn'tnecessarily the electricity killing the corals, but more the heat generated from it passing through the flesh and water between the wires. The last thing I tested on the first day was a large, agressive, encrusting montipora that was overtaking another montipora and several acroporas. I was able to burn back the growth edges without the whole colony ever fully reacting. My adapted invention was working!

But there was one very valuable lesson I learned that day... sixteen volts at ten amps doesnt feel good when its electrocuting you.Not necessarily deadly, but why take a chance? Having so much fun, I became careless and ended up getting both hands wet. Remember, I said I had a brass doorbell from the front door. I also didn't have my new invention plugged into a GFCI outlet. One good buzz from my contraption and I knew I needed to fool proof it before I could show it to my friends, so I made some PVC isolators that you'll see in the pictures which follow.

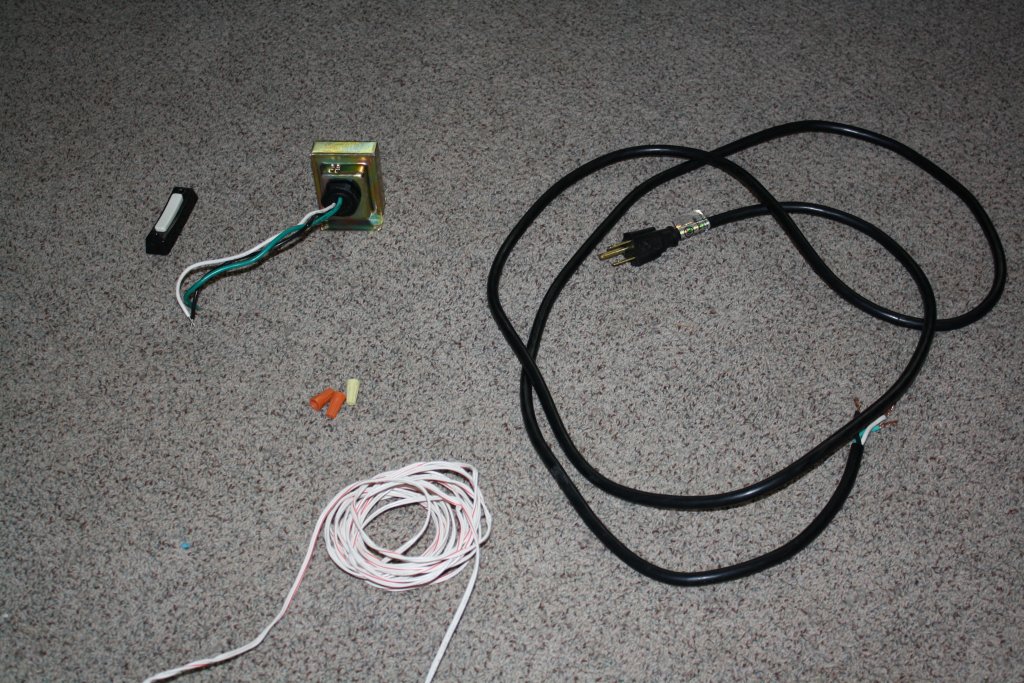

First, gather the supplies needed.
A door bell ballast, plastic doorbell, doorbell wire (18 guage wire), wire nuts, grounded electrical cord, electrical tape, metal coat hanger, two six inch lengths of 1/2" PVC pipe and one end cap. (Not all supplies shown)
Click image for larger version

Name:	IMG_4204.jpg
Views:	6474
Size:	208.8 KB
ID:	646

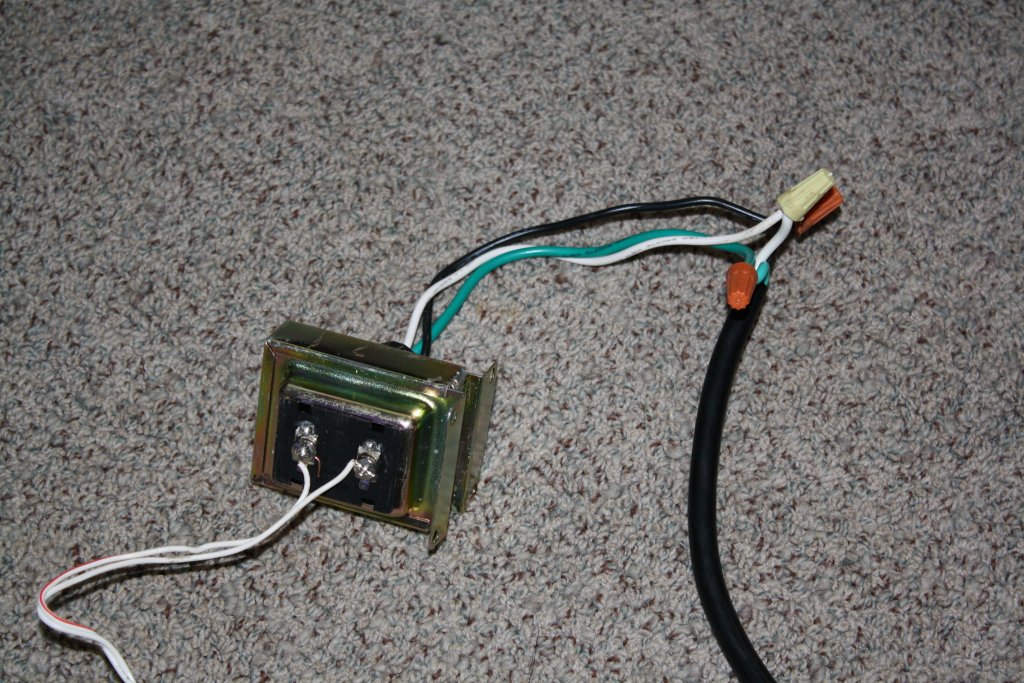

Next, use the wire nuts to attach the grounded cord to the ballast, match the colored wires to each other and twist them together with the wire nuts. Then strip the doorbell wire about 3/8 of an inch. Use the screws on the ballast to attach the wire. I covered the wire nuts with tape to help keep them from being pulled apart.
Click image for larger version

Name:	IMG_4215.jpg
Views:	12663
Size:	198.8 KB
ID:	647

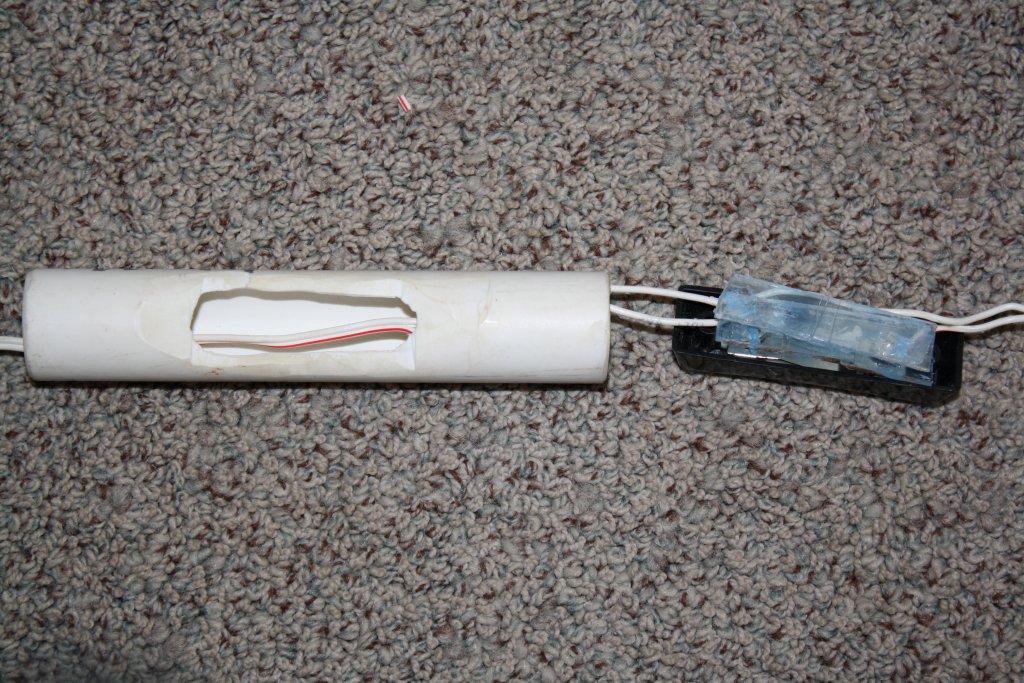

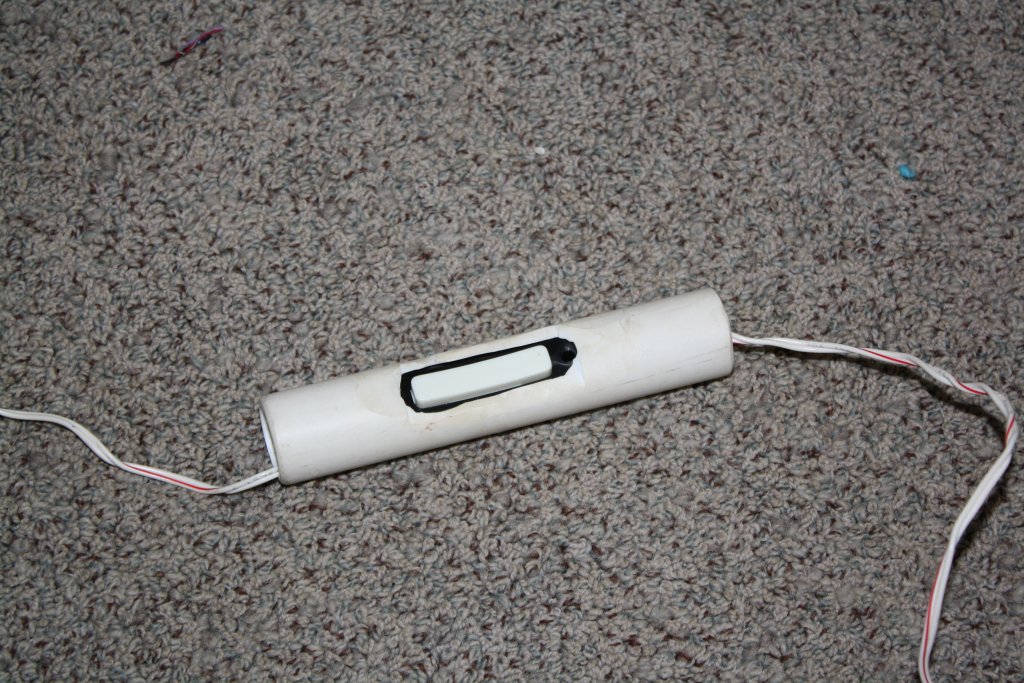

The next step will require tools to make the PVC handles to protect yourself from the copper wires. I used my belt sander to cut the side off the pipe so the door bell switch is hidden in a durable sleeve. A dremel will work just as well. I had to use some scrap acrylic to keep myself from pushing the switch apart inside it. Slide the sleeve over the free end of the wire leaving about six feet out of one end for the burner assembly. Splice the wire as shown in the picture, use the acrylic backing for the switch and slide the switch inside.
Click image for larger version

Name:	IMG_4205.jpg
Views:	5437
Size:	212.1 KB
ID:	650Click image for larger version

Name:	IMG_4209.jpg
Views:	5876
Size:	200.7 KB
ID:	649Click image for larger version

Name:	IMG_4212.jpg
Views:	5666
Size:	195.6 KB
ID:	648

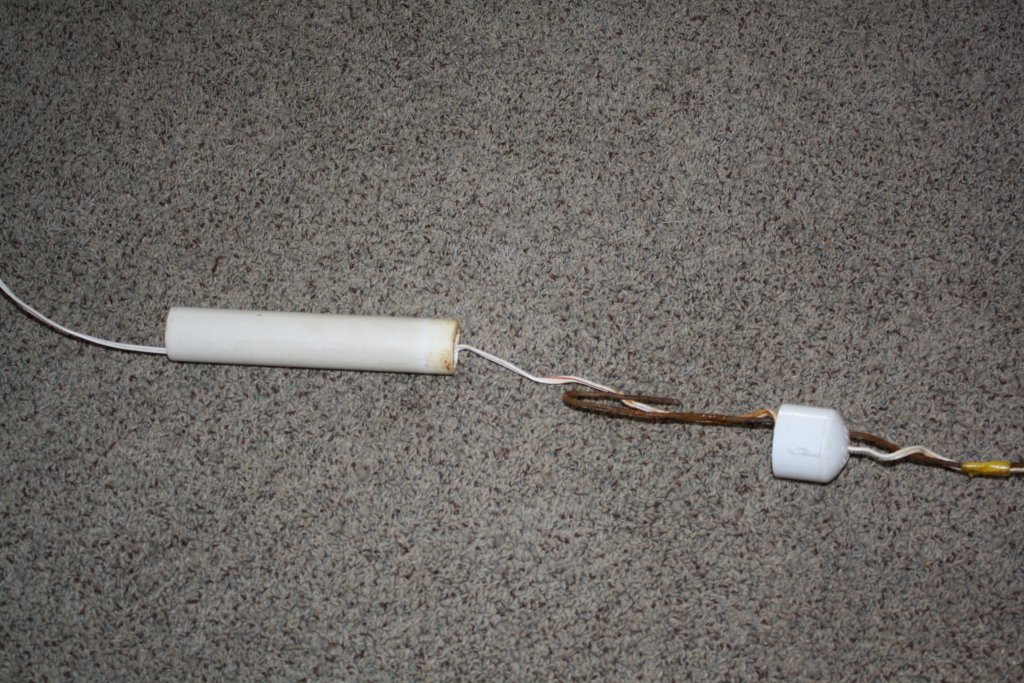

Then build the burner handle. This is as easy as drilling two 1/8 inch holes in the end cap. Slide the other piece of PVC over the wire. Feed the wire wire through one hole and the coat hanger into the other. Put the end cap onto the pipe and you have a handle. Then tape the wire to the coat hanger with electrical tape leaving about an inch of wire hanging past the hanger.

Click image for larger version

Name:	IMG_4218.jpg
Views:	5757
Size:	195.8 KB
ID:	651

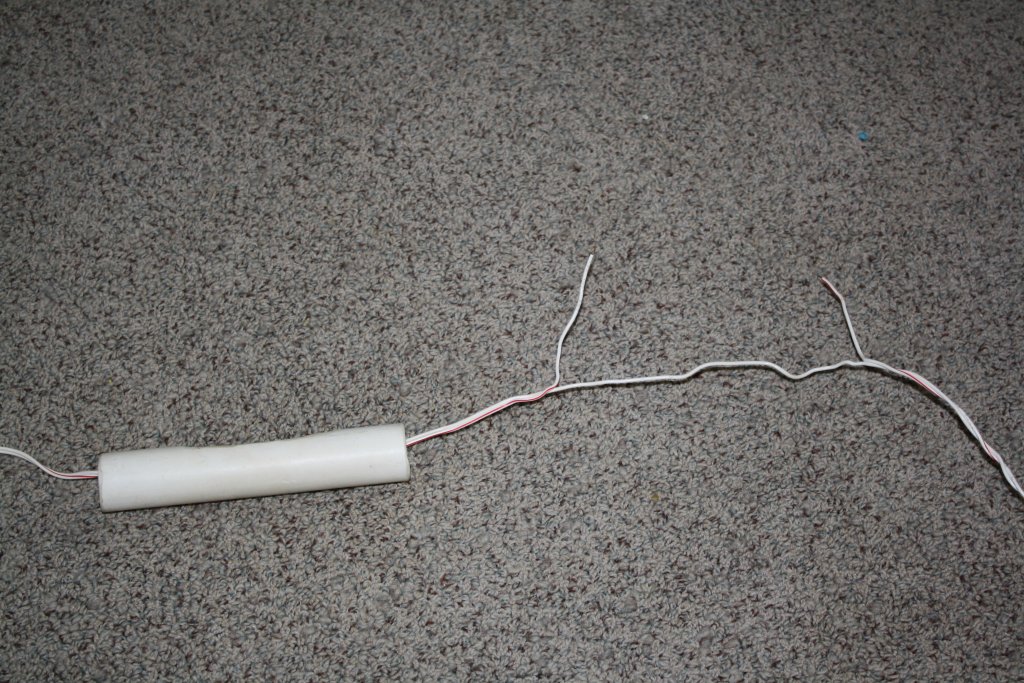

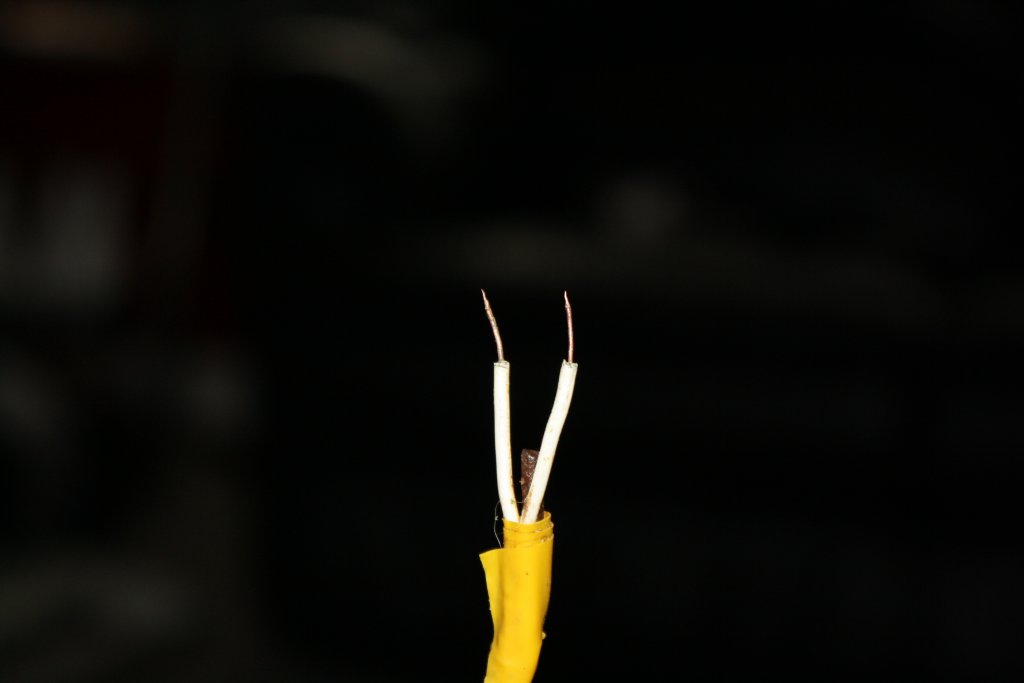

This leads us to the last two steps - baring the wires and killing aptasia anenomes.
Click image for larger version

Name:	IMG_4228.jpg
Views:	5683
Size:	23.7 KB
ID:	652

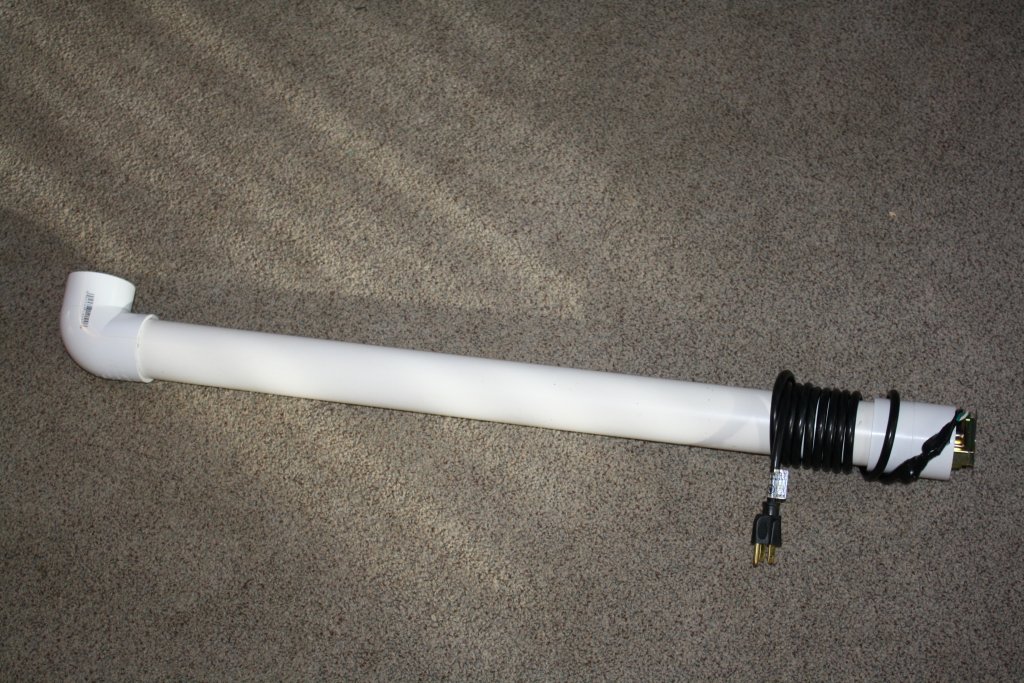

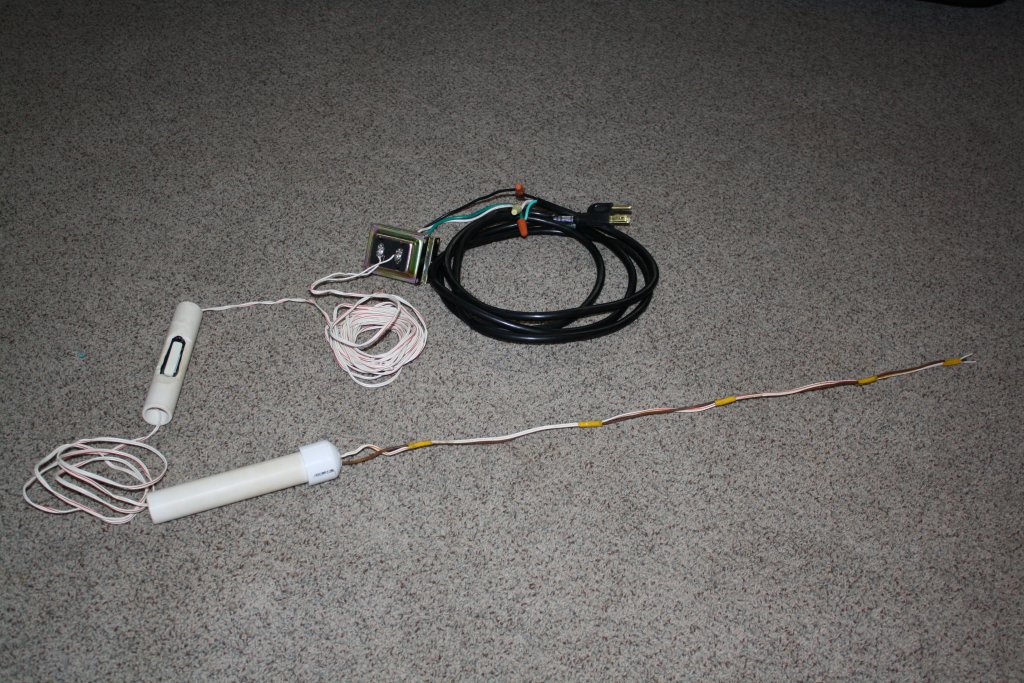

Here is a picture of my finished product and a carry case made from two inch scrap parts. The case is handy for lending it to friends.
Click image for larger version

Name:	IMG_4233.jpg
Views:	5357
Size:	194.9 KB
ID:	654

Click image for larger version

Name:	IMG_4237.jpg
Views:	5563
Size:	180.0 KB
ID:	653

I find that I have to literally burn the aptasias to a pulp. When its foot is a glob of pulp floating away, or sticking to the wires I know it will not regrow. As with any pest removal remedy for our reef tanks. The burner has its place in my routine. I do still occasionally mix up a kalk paste for killing aptasia, but not very often. Just recently, I was able to kill a small anenome living inside of a large SPS colony. I never would have risked putting a kalk paste into the middle of a colony but the small wires fit right in and the pest was gone in no time.

Submit "An Easy DIY Aptasia Burner" to Digg Submit "An Easy DIY Aptasia Burner" to del.icio.us Submit "An Easy DIY Aptasia Burner" to StumbleUpon Submit "An Easy DIY Aptasia Burner" to Google

Updated 01-26-2010 at 09:59 PM by Trido

Tags: diy, electrical
Categories
Electrical

Comments

  1. duster's Avatar
    This is sweet!! A DIY project that involves electrical currents, and water.
  2. Trido's Avatar
    Your scaring me......
  3. drimo's Avatar
    You can come to my house and use this to kill my majano infestation. Seriously, that thing scares me!
  4. Trido's Avatar
    Quote Originally Posted by drimo
    You can come to my house and use this to kill my majano infestation. Seriously, that thing scares me!
    Fly me out. I'll kill your majano's and demonstrate to your local club too.
  5. Plantguy's Avatar
    Aiptasia-Prod, I LIKE it!
  6. MMoore0324's Avatar
    Well this is just outstanding! Of course, will my luck... things will go horribly wrong and I'll be blogging from the hospital bed for the next few days!
  7. Jessy's Avatar
    THIS has to be the most insane method of killing aiptasia EVER
  8. Trido's Avatar
    It does kind of remind me of a cattle prod or electric branding iron..

    Its not as scary as it sounds. You could always build the front end like I did and hook it up to a twelve volt flashlight battery.

    Its not insane. Just really, really creative. Admit it, we all stuck a nine volt battery on our tongues as kids. This is only twice as strong. Shouldnt every aptasia experience the same tongue buzz at least once in their life? We shouldnt deprive them of it.
    Updated 01-27-2010 at 10:55 AM by Trido
  9. DolphinLvr's Avatar
    Awesome Build Trido!!!! Too bad I didnt see it in action, but I am sure there will be a time!
  10. 1fishkeeper's Avatar
    I think I will just stick with the TNT to rid my tank of them.
  11. duster's Avatar
    It's amazing what people will do out of desperation.
  12. jhampton_wsu's Avatar
    Maybe some day I'll fly you out and you can speak to my club. I guess that's if I ever get time to go to another meeting. Good article.
    Updated 02-10-2010 at 10:45 PM by Trido
  13. Trido's Avatar
    Quote Originally Posted by jhampton_wsu
    Maybe some day I'll fly you out and you can speak to my club. I guess that's if I ever get time to go to another meeting. Good article.
    Dont you live just over the hill from me?
  14. mfinn's Avatar
    looks like fun
  15. upster's Avatar
    Don't you think it would be easier to just connect a car battery to some steel wool???

    Ingenious. I'd love to see a video.
  16. lesd's Avatar
    I love this idea! Being an Electrical Engineer I'm tempted to try it myself on the few majanos I have that are always avoiding the Joe's Juice. Could also be useful for controlling green star polyps.

    One question - I assume that the wires you are putting into the tank are copper wires. Any worry about copper poisoning your inverts? I'm thinking it might be worthwhile to find some aluminum wiring for the wires that go into the tank.
  17. Trido's Avatar
    Quote Originally Posted by lesd
    I love this idea! Being an Electrical Engineer I'm tempted to try it myself on the few majanos I have that are always avoiding the Joe's Juice. Could also be useful for controlling green star polyps.

    One question - I assume that the wires you are putting into the tank are copper wires. Any worry about copper poisoning your inverts? I'm thinking it might be worthwhile to find some aluminum wiring for the wires that go into the tank.

    Its definately a fun toy.
    For me, the copper isnt a worry at all. I only burn off 1/4" off wire on one side (typically it loses its strength because its thin and not totally disolved and I cut it off) after about six uses, or 20 aptasia. I only use it every other month to kill four or five of them and do a 20% WC monthly. OK so lets say 10% to be realistic. So, 10% WC's over a years time is 120% clean water for my total volume for a quarter of an inch of wire that became thin. To me its negligable.
    For someone with a 40 breeder going on a rampage and killing 40 aptasia, I'd be just as worried about the massive spike in nutrients from killing so many pests than I would the copper. I'd recommend a big WC anyway
